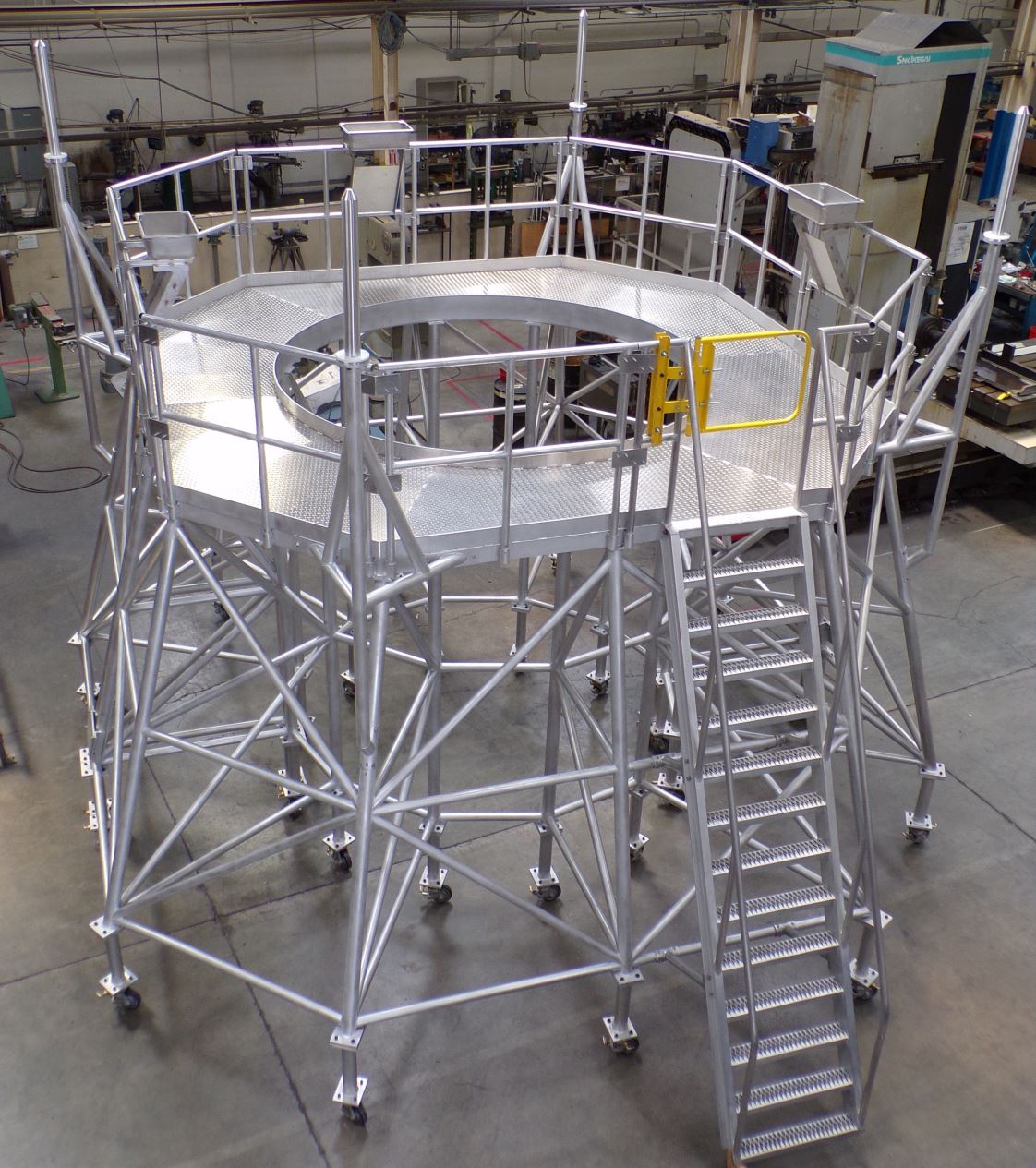

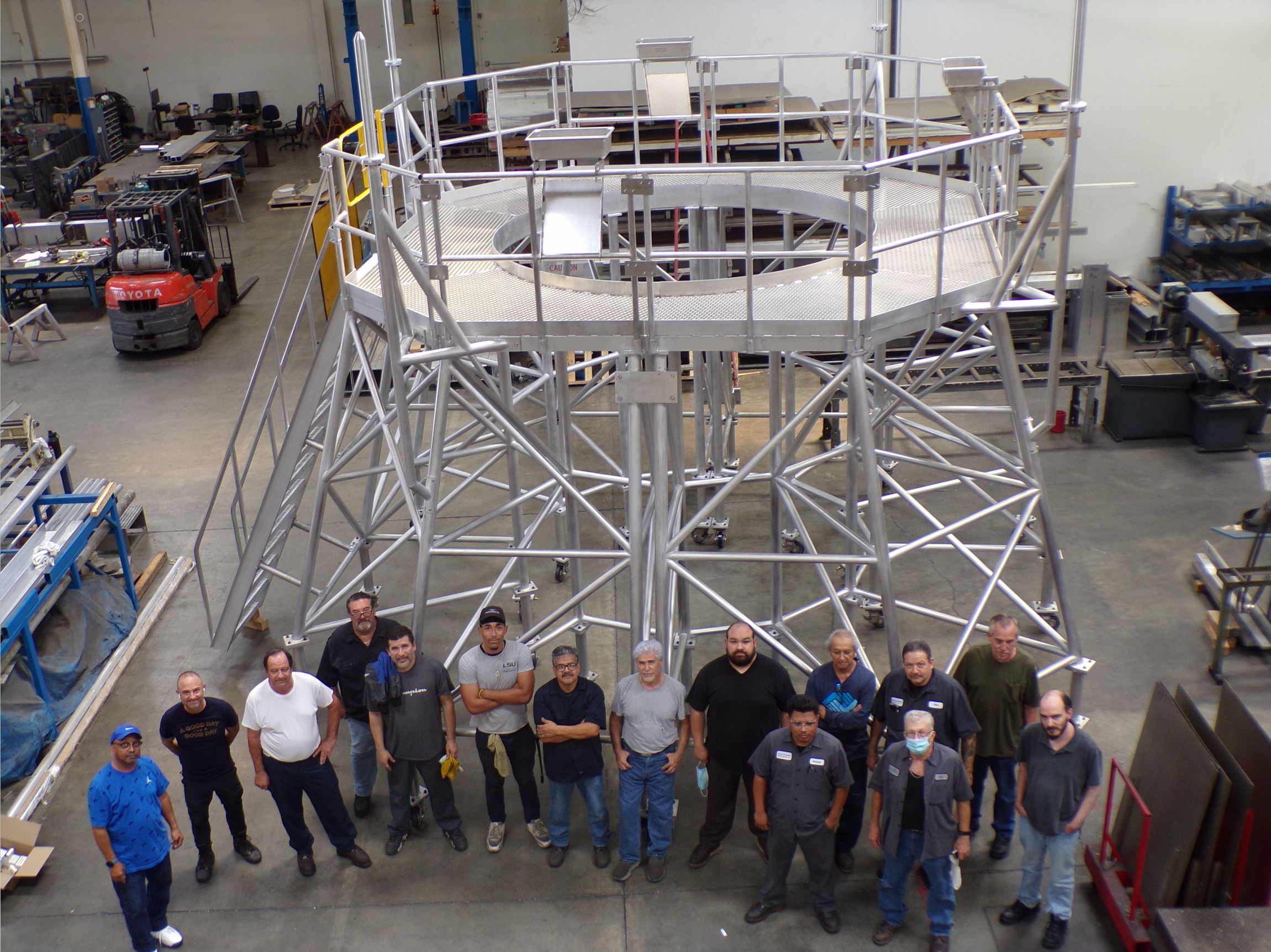

Rocket Work Stand

Job Request : The request for this job was to fabricate a large work stand from a hand drawn drawing for use in assembly

Summary : The complexity of the coping in the circular tubing sections of this work stand necessitated a reverse engineering into a CAD model. Additionally the work stand had extraneous components that Coast Aerospace brought to the customers attention which we were then approved to remove, therefore saving the customer time and money. The CAD model was then put through stress analysis to confirm structural integrity as per purchaser specifications. Once moved to manufacturing the work stand was manufactured and assembled without difficulty, despite the complexity of the circular tube copping.
